VESSEL NAME:

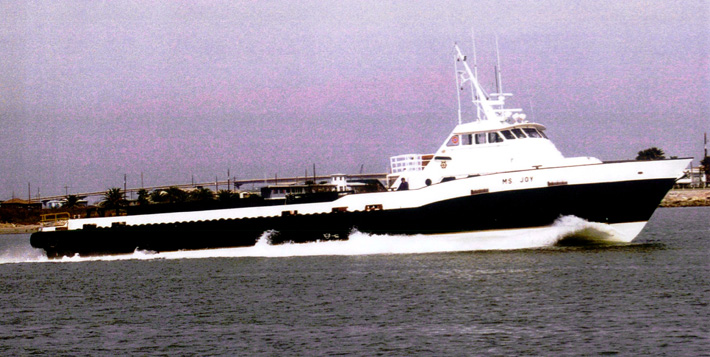

MS. JOY

Ms Joy

  • SPECIFICATIONS & GENERAL ARRANGEMENT
    Download File Click here to open specifications sheet in PDF AdobePDF
  • REGISTRATION
    Owner Barry Graham Oil Service, LLC
    Operator Barry Graham Oil Service, LLC
    Year Built 1998
    Place Built Breaux's Bay Craft
    Flag USA
    Classification USCG Subchapter T, Aluminum Hull Construction, Passenger (Inspected) Service
  • MAIN CHARACTERISTICS
    Length Overall 152 ft
    Beam 30 ft
    Depth 12 ft
    Operating Draft 7.25 ft
    Light Displacement 126.27 LT
    Summer Freeboard 4.75 ft
  • CAPACITIES
    Fuel 15,514 USG
    RIG Water 31,480 USG
    Potable Water 821 USG
  • DECK CARGO
    Tonnage 249 LT
    Length 87 ft
    Width 25 ft
    Clear Deck Area 2,175 ft sq
  • TONNAGE
    Gross Registered Tons 98 GT
    Net Registered Tons 68 GT
  • MACHINERY
    Main Engines 4 - 16v92-TA-DDEC
    Horsepower 4,400 hp
    Generators 2–50 KW
    Fire Monitor 350 gpm
  • PERFORMANCE
    Maximum Speed 22.5 knots
    Economy Speed 17.5 knots
  • FUEL CONSUMPTION
    Maximum Speed 160 USG/hour
    Maximum Speed 120 USG/hour
  • ACCOMMODATIONS
    Crew 4 persons
    Maximum Passengers 65 persons
    Berths 10
    Passenger Area 71 first class seats & 1 head
  • ELECTRONICS & CONTROLS
    2 RadarS GPS Positioning Plotter
    SSB Radio 2 VHF Radios
    AIS Locating Depth Sounder
    Chart Plotter Magnetic Compass
    EPIRB 406 MHZ Loudhailer
    PA System Navtex
    Boatracs
  • SPECIAL EQUIPMENT
    INFLATABLE LIFE RAFTS 72 Total Capacity
    Life Preservers 69 Adult
    Rescue Equipment Rescue Platform, Ring Buoys
    DAVIT USCG Inspected
    Fuel Meter Rotary Meter, Flow Meter Register with Printer
    Engine Monitoring CSP
    Search Light 3 Total
    Firefighting Fixed CO2 System in all Machinery Spaces , Hand Portable & Semi Portable Throughout vessel
    Fire Detection Integrated Smoke & Heat Detection
