VESSEL NAME:

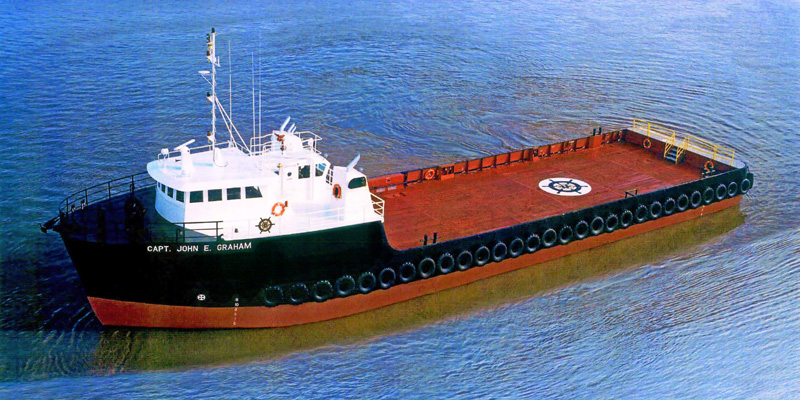

CAPT. JOHN E. GRAHAM

CaptJohnEGraham

  • SPECIFICATIONS & GENERAL ARRANGEMENT
    Download File Click here to open specifications sheet in PDF AdobePDF
  • REGISTRATION
    Owner Barry Graham Oil Service, LLC
    Operator Barry Graham Oil Service, LLC
    Year Built 2004
    Place Built Halimar Shipyard, LLC
    Flag USA
    Classification USCG Subchapter L, Steel Hull Construction, Utility Vessel (OSV)
  • MAIN CHARACTERISTICS
    Length Overall 145 ft
    Beam 36 ft
    Depth 12 ft
    Operating Draft 10.5 ft
    Light Displacement 365.71 LT
    Summer Freeboard 1.83 ft
  • CAPACITIES
    Fuel32,000 USG
    Potable Water 9,000 USG
    Ballast/Rig Water 74,000 USG
    methanol 5 45,559 USG (1,300 BBLS)
    sewage900 USG
    Cooler Walk-In 450 ft cu
    Freezer Walk-In 450 ft cu
  • DECK CARGO
    Tonnage 350 LT
    Length 94 ft
    Width 32 ft
    Clear Deck Area 3,008 ft sq
  • TONNAGE
    Gross Registered Tons 88 GT
    Net Registered Tons 67 GT
  • MACHINERY
    Main Engines2– Cummins KTA 38-MO
    Horsepower 1,600 hp
    Reduction Gears Twin disc MG5225
    Gear Ratio 5.04:1
    Generators 2– Cummins/Onan 6B5.9-D (m) 55kw
    Tunnel Bow Thruster Cummins N14-M, 360 hp
    Fire Monitor 2,500 gpm
  • PERFORMANCE
    Maximum Speed (Light Ship) 13.8 knots (57 LT)
    Maximum Speed (Full Load)11.5 knots (350 LT)
  • FUEL CONSUMPTION
    Maximum Speed (Light Ship) 78 USG/hour
    Maximum Speed (Full Load)78 USG/hour
  • ACCOMMODATIONS
    Crew 4 persons
    Maximum Passengers 36 persons, Limited to 16 persons when carrying Methyl Alcohol
    Berths 16
  • ELECTRONICS & CONTROLS
    Radar GPS Positioning Plotter
    SSB Radio 3 VHF Radios
    AIS LocatingDepth Sounder
    Chart PlotterMagnetic Compass
    EPIRB 406 MHZ Loudhailer
    PA SystemNavtex
    Boatracs Satellite Telephone
  • SPECIAL EQUIPMENT
    Life Floats 40 Total Capacity
    Life Preservers 43 Adult
    Rescue Equipment Rescue Platform, Ring Buoys
    DAVIT USCG Inspected
    Fuel Meter Rotary Meter, Flow Meter Register with Printer
    Engine Monitoring CSP
    Search Light 3 Total
    Firefighting Hand Portable & Semi-Portable throughout vessel
    Fire Detection Integrated Smoke & Heat Detection
